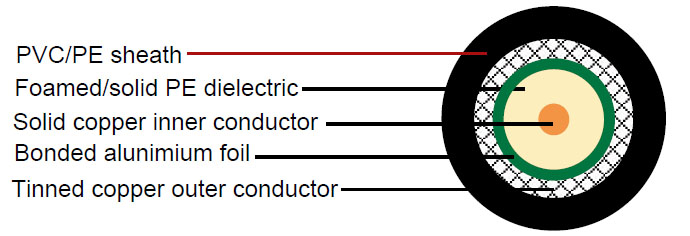

Construction :

• Inner conductor	Bare copper/Copper clad steel	Φ2.6 mm
  Dielectric	Foam /Solid PE	Φ7.3±0.02 mm
  Shield	Bonded aluminium foil	Φ7.5 mm
  Outer conductor	Tinned copper braid	Φ8.0 mm
  Shield coverage		85%
  Sheath	PVC/PE	Φ9.8 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	82 pF/m
  Velocity of propagation	82%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	3.3(5.0)) Ohm/Km
  Outer conductor resistance	9.3 Ohm/Km
  Operating temperature range	-40°C - +85 °C
  Min.bending radius	49 mm

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  100	4.3	1.3
  150	5.3	1.6
  280	7.3	2.2
  350	8.3	2.5
  400	9.0	2.7
  800	13.1	4.0
  900	14.2	4.3
  1200	16.7	5.1
  1500	19.0	5.8
  1800	21.2	6.5
  1900	21.8	6.6
  2000	22.5	6.9
  2200	23.8	7.3
  2500	25.7	7.8
